Rolling Deployment in Kubernetes: Zero-Downtime Releases with Health Gates

Where I use rolling deployment

Rolling deployment is my default release strategy for many stateless services when:

• old and new versions can run together;
• database/API changes are backward compatible;
• the release risk is moderate;
• I do not need explicit traffic percentages.

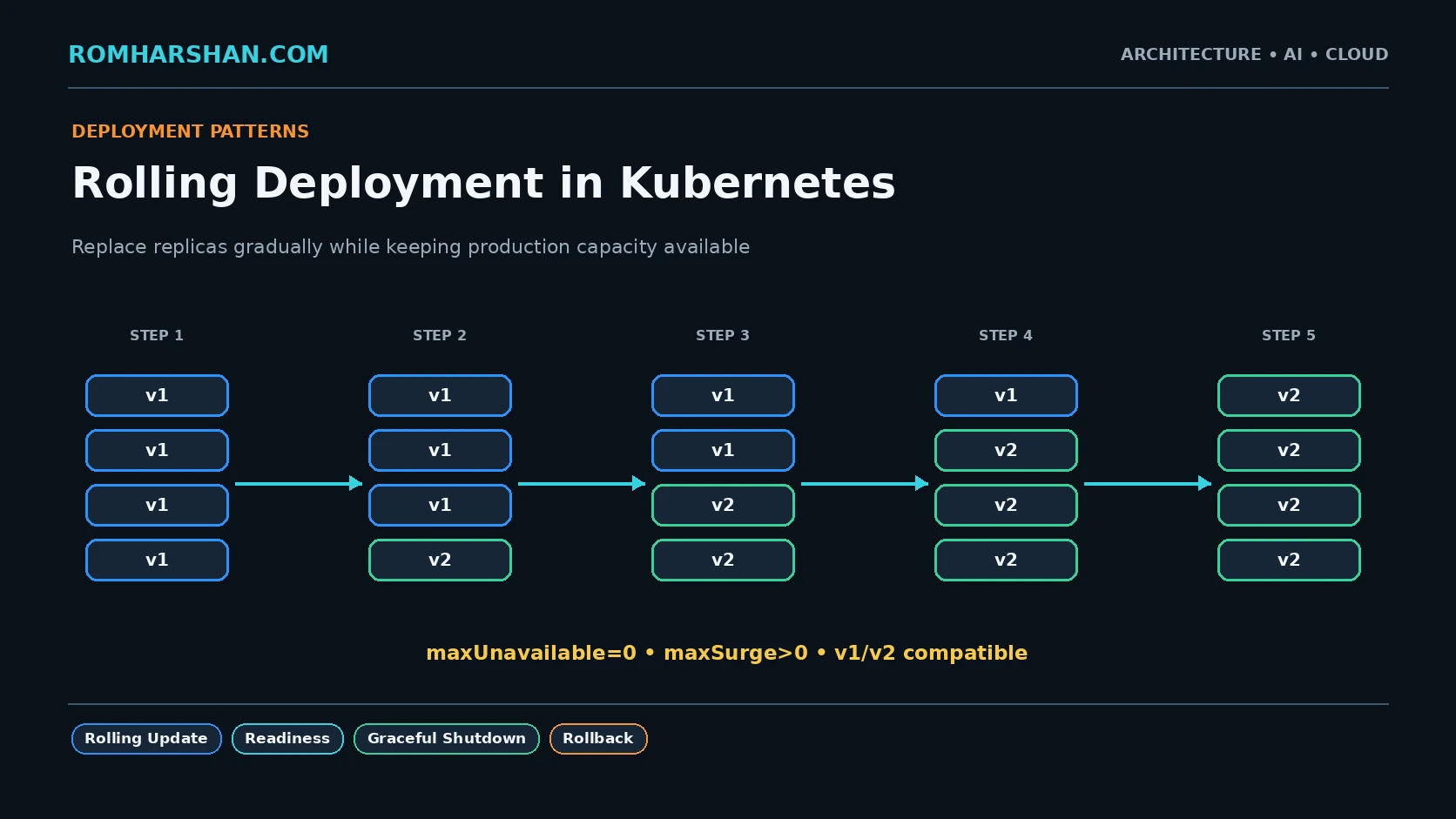

Kubernetes replaces pods gradually.

v1 v1 v1 v1
   |
deploy v2
   v
v1 v1 v1 v2
   |
   v
v1 v1 v2 v2
   |
   v
v1 v2 v2 v2
   |
   v
v2 v2 v2 v2

Deployment configuration

apiVersion: apps/v1
kind: Deployment
metadata:
  name: booking-service
spec:
  replicas: 6
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxSurge: 2
      maxUnavailable: 0
  selector:
    matchLabels:
      app: booking-service
  template:
    metadata:
      labels:
        app: booking-service
    spec:
      terminationGracePeriodSeconds: 30
      containers:
        - name: booking
          image: registry.example/booking:2026.09.01
          ports:
            - containerPort: 8080
          readinessProbe:
            httpGet:
              path: /health/ready
              port: 8080
            periodSeconds: 5
            failureThreshold: 2
          livenessProbe:
            httpGet:
              path: /health/live
              port: 8080
            periodSeconds: 10
            failureThreshold: 3

maxUnavailable: 0 keeps all desired capacity available while new pods start, but it requires enough cluster headroom for surge pods.

Readiness is the release gate

A pod should not receive traffic because the process exists.

The new version must complete:

configuration validation
database connectivity setup
cache/client initialization
route registration
required startup checks

before readiness returns success.

I keep readiness lightweight. If readiness makes five remote API calls every few seconds, the health check can become its own traffic generator.

Graceful shutdown

During rollout Kubernetes sends SIGTERM.

NestJS:

async function bootstrap() {
  const app = await NestFactory.create(AppModule);

  app.enableShutdownHooks();

  await app.listen(8080);
}

Custom cleanup:

@Injectable()
export class ShutdownService
  implements OnApplicationShutdown {

  async onApplicationShutdown() {
    await this.kafkaConsumer.stop();
    await this.outboxPublisher.stop();
    await this.db.destroy();
  }
}

The service should stop accepting new work, finish in-flight operations within a bounded period and close consumers/connections.

Backward-compatible APIs

During rolling deployment v1 and v2 coexist.

Therefore this is dangerous:

v2 starts requiring field "newRequiredField"
v1 clients/pods do not send it

I use additive contracts first:

{
  "bookingId": "B1001",
  "newOptionalField": null
}

then remove old behavior in a later release after every caller has migrated.

Database compatibility

Bad sequence:

DROP old_column
deploy new code

because v1 pods may still read old_column.

Safe sequence:

1. add new schema
2. deploy code that understands old + new
3. migrate/backfill
4. switch reads/writes
5. verify
6. remove old schema later

This is the expand-contract pattern.

Rollout status

kubectl rollout status \
  deployment/booking-service \
  --timeout=180s

History:

kubectl rollout history \
  deployment/booking-service

Rollback:

kubectl rollout undo \
  deployment/booking-service

Rollback is safe only if data/schema changes are backward compatible.

Failure scenarios

New pods never become ready

Kubernetes pauses progress while old replicas remain. Alert on rollout timeout and inspect new pod logs/events.

New version is ready but functionally wrong

Readiness cannot detect every business defect. This is where smoke tests, synthetic transactions and canary/blue-green become useful for high-risk releases.

Cluster has no surge capacity

The rollout can stall. Capacity planning must include deployment surge.

Long-running request dies during termination

Use graceful shutdown, load-balancer draining and a termination grace period greater than expected in-flight work.

Production checklist

• Backward-compatible API.
• Backward-compatible database.
• Readiness probe.
• Liveness probe with different purpose.
• Graceful SIGTERM handling.
• Enough surge capacity.
• Rollout timeout.
• Smoke test after deployment.
• Error/latency monitoring by version.
• Tested rollback.

FAQ

Is rolling deployment zero downtime?

It can be when readiness, capacity and graceful shutdown are designed correctly.

Rolling or canary?

Rolling replaces instances gradually but usually does not measure explicit user percentages. Canary deliberately sends a small controlled traffic percentage to the new version.

Can I roll back after a DB migration?

Only if the schema/data remains compatible with the old application.

Related architecture guides

• Canary Deployment

• Zero-Downtime Database Changes

  Architect's final take

  Rolling deployment is simple and powerful when compatibility is engineered deliberately. Most failed rollouts I see are really contract, readiness or shutdown problems.
